Dartmouth Time-sharing System: A quick tour using DTSS.EXE

In this post we'll look at how to get the Dartmouth Time-sharing System emulator DTSS up and running. As mentioned in the previous post, this is fairly limited in what it can do, but gives a flavour of what a user of the system in around 1964 would see.

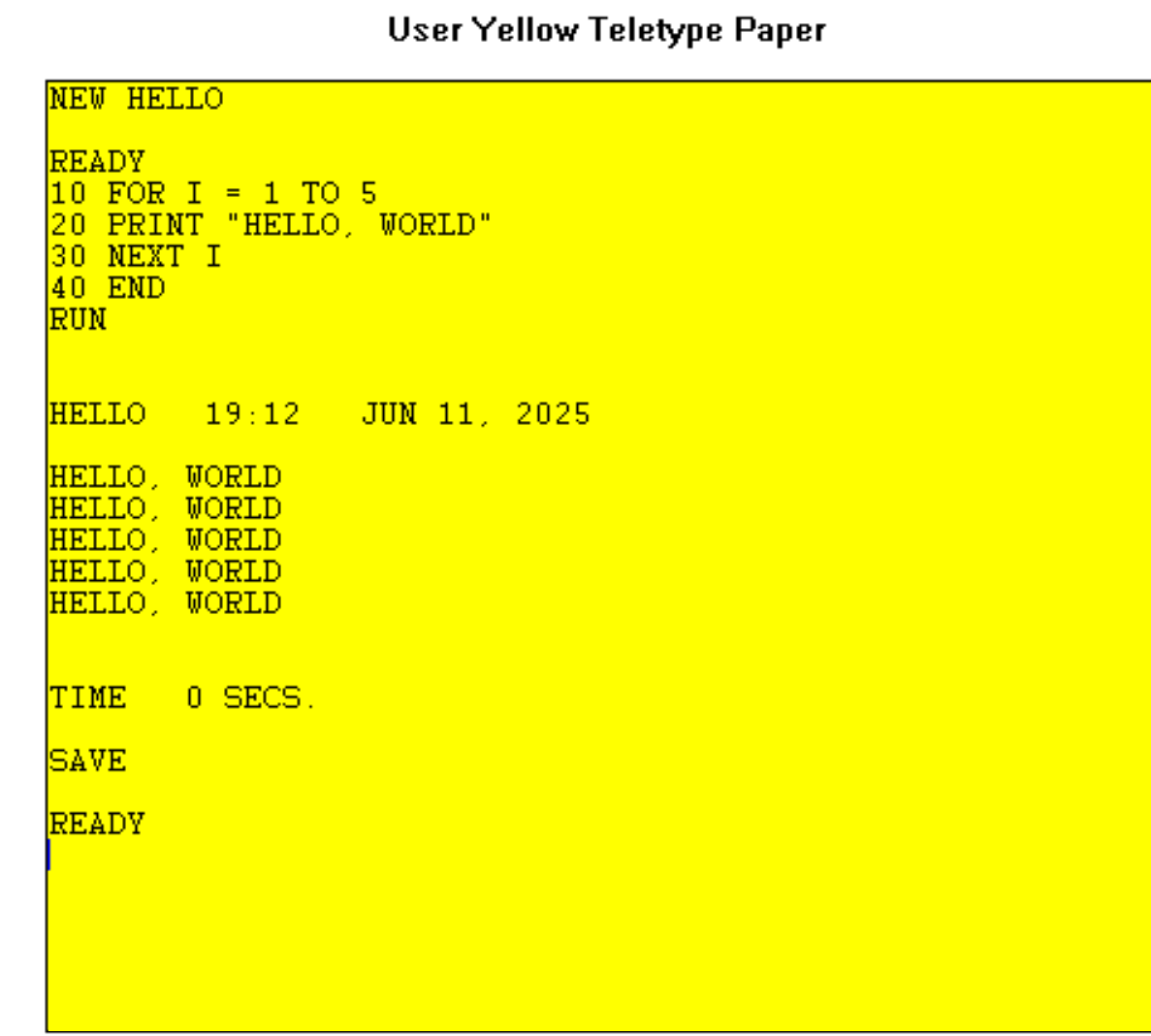

/images/dtss/dtss-exe-simple-program.png

Running DTSS.EXE. Source: Rupert Lane. License: CC0.

Set up

Download the Windows zip file from the dtss.dartmouth.edu site and unpack it to a directory. Then just run the DTSS.EXE program to start; on non-Windows devices with Wine installed, run wine DTSS.EXE instead.

There are no user configurable options to adjust the simulator or interface.

Input should all be in upper case. Note that copy/paste does not work, usually bringing up an error message that ends the emulator. But there is a way to get programs in and out of the system - see below.

Entering a simple BASIC program

Type NEW HELLO to start a new program called HELLO. Then type the program lines including the starting line number.

10 FOR I = 1 TO 5
20 PRINT "HELLO, WORLD"
30 NEXT I
40 END

You can edit the program by retyping any lines. To delete a line, just type the line number and press Enter.

Type RUN to start the program and LIST to get a listing.

To save the program to disk, type SAVE.

You can then exit the emulator by typing BYE or just closing the window. When you come back, load your old program by typing OLD HELLO.

Program libraries

There are two libraries, a personal one and a system one. Type CAT to see your library: you will see your HELLO program along with a number of other demo programs.

To see what is in the system library, type OLD LIBCAT*** then LIST. To load one of these programs, for example FTBALL, type OLD FTBALL*** (note the *** at the end to denote a system program.

100 BASIC PROGRAMS
110
120 AVELOG***   AVERAGE OF 100 LOGARITHMS
130 FTBALL***   DARTMOUTH FOOTBALL
140 GUESS***    GUESS A NUMBER FROM 1 TO 100
150 GCD***      GREATEST COMMON DIVISOR (GCD)
160 GCD3NO***   GCD OF THREE NUMBERS
170 MORT***     CALCULATES LIFE OF A MORTGAGE
180 NORMAL***   PLOT OF THE NORMAL CURVE
190 QUAD***     SOLVE A QUADRATIC EQUATION
200 PIE***      APPROXIMATE PIE

Getting data in and out

Programs are stored on the host file system as plain text files, with your library in the same dierctory as the executable, and the system library under LIB/. So to see the text of your HELLO program, look for the file named HELLO without an extension.

You can view, edit and create new files outside of the emulator using this method. Remember to save files in DOS format, ie with CR/LF at the end of each line.

Other features

The SPEED command will adjust the speed of the emulator: SPEED 10 is approximately the speed of the original system.

You can switch from BASIC to ALGOL with SYSTEM ALGOL.

There is a computer aided learning system called TEACH available also.

Further information

The DTSS emulator zip file contains three useful documents.

  • Commands.pdf
  • A BASIC Outline.pdf
  • An Algol Outline.pdf

A 1964 introduction to the system and BASIC can be found on bitsavers.

We'll look at BASIC and ALGOL in more detail in upcoming posts.

Questions, corrections, comments

I welcome any questions or comments, and also especially any corrections if I have got something wrong. Please email me at rupert@timereshared.com and I will add it here and update the main text.
